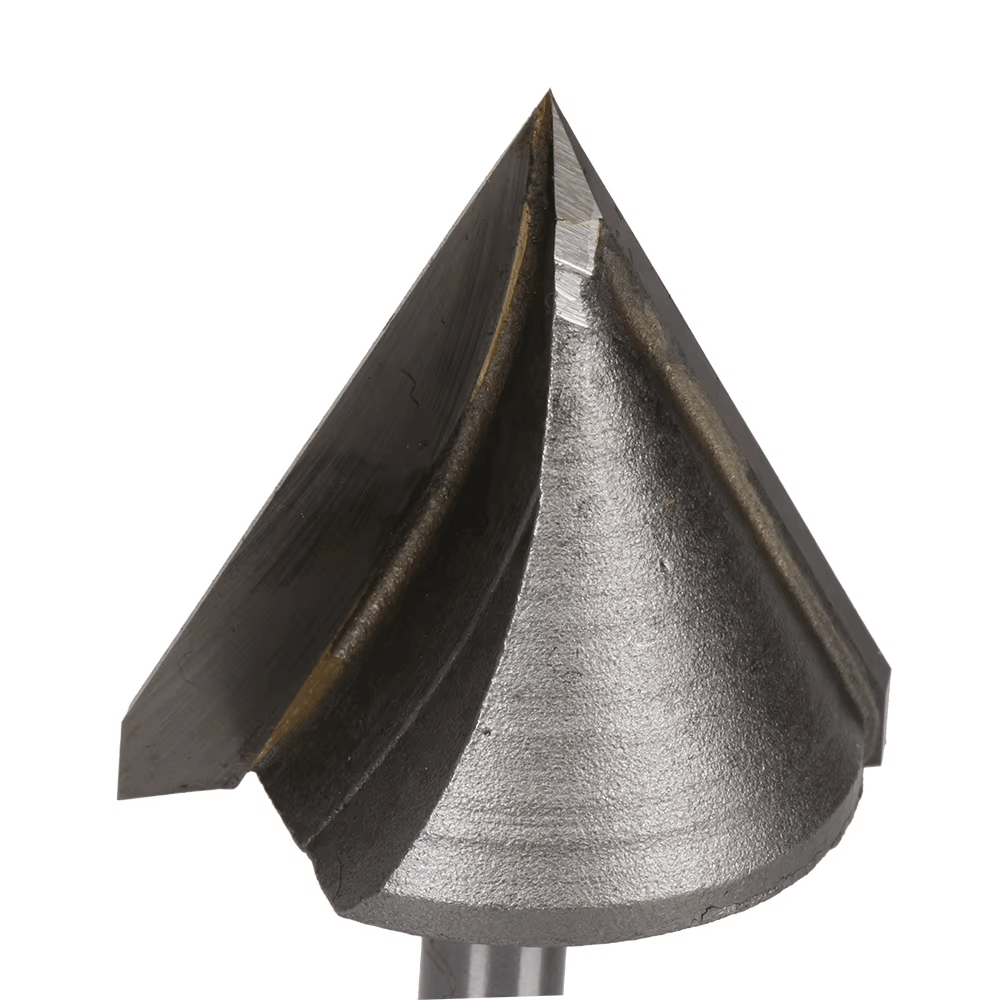

Carbide Tipped V-Groove Router Bit 1033

  • Code：1104
  • Material：Diamond
  • Application: wood
  • SHK：6/8 mm
  • Angle：60°/120°/150°
  • Flute：2
Sign Up To Get 12% Off For Your First Order

Main features

  • Alloy blade technology, sharpness and constant blade, long use time,
  • Chip removal grinding degree, fine research and development design of cutter head chip removal smoother.
Carbide V-Groove Bit
序号 编号 关键尺寸 柄径 刃宽 角度
NO Order No. Size SHK WIDTH ANGLE
1 103361660 16*60°*6 6 16 60
2 103361690 16*90°*6 6 16 90
3 103361612 16*120°*6 6 16 120
4 103361613 16*135°*6 6 16 135
5 103361615 16*150°*6 6 16 150
6 103362260 22*60°*6 6 22 60
7 103362290 22*90°*6 6 22 90
8 103362212 22*120°*6 6 22 120
9 103362213 22*135°*6 6 22 135
10 103362215 22*150°*6 6 22 150
11 103363260 32*60°*6 6 32 60
12 103363290 32*90°*6 6 32 90
13 103363212 32*120°*6 6 32 120
14 103363213 32*135°*6 6 32 135
15 103363215 32*150°*6 6 32 150
16 103381660 16*60°*8 8 16 60
17 103381690 16*90°*8 8 16 90
18 103381612 16*120°*8 8 16 120
19 103381613 16*135°*8 8 16 135
20 103381615 16*150°*8 8 16 150
21 103382260 22*60°*8 8 22 60
22 103382290 22*90°*8 8 22 90
23 103382212 22*120°*8 8 22 120
24 103382213 22*135°*8 8 22 135
25 103382215 22*150°*8 8 22 150
26 103383260 32*60°*8 8 32 60
27 103383290 32*90°*8 8 32 90
28 103383212 32*120°*8 8 32 120
29 103383213 32*135°*8 8 32 135
30 103383215 32*150°*8 8 32 150
31 103311660 16*60°*12.7 12.7 16 60
32 103311690 16*90°*12.7 12.7 16 90
33 103311612 16*120°*12.7 12.7 16 120
34 103311613 16*135°*12.7 12.7 16 135
35 103311615 16*150°*12.7 12.7 16 150
36 103312260 22*60°*12.7 12.7 22 60
37 103312290 22*90°*12.7 12.7 22 90
38 103312212 22*120°*12.7 12.7 22 120
39 103312213 22*135°*12.7 12.7 22 135
40 103312215 22*150°*12.7 12.7 22 150
41 103312360 32*60°*12.7 12.7 32 60
42 103312390 32*90°*12.7 12.7 32 90
43 103312312 32*120°*12.7 12.7 32 120
44 103312313 32*135°*12.7 12.7 32 135
45 103312315 32*150°*12.7 12.7 32 150

Speed And Feeds

Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.

Contact Us: [email protected]

Click there to download files

Recommended Products

TCT Three Flutes Spiral Bit

Two Flutes Tapered Ball Nose End Mill

Solid Carbide Corn End Mill

We are a manufacturer. And we also have our own trading company. We have a professional R&D team, sale team,etc. We can provide you the best quality goods and the perfect service.

Yes. Customization is available.

Usually our MOQ is 100 pcs per item, but we can accept 10 pcs for the first trial order to support new customer.

In stock items just 24 hours after payment;for customized items, 3-7 days will be used for the production.

According to our company policy, our payment term should be 100% T/T in advance.Payment term is flexible if we build up long term partnership in future.
