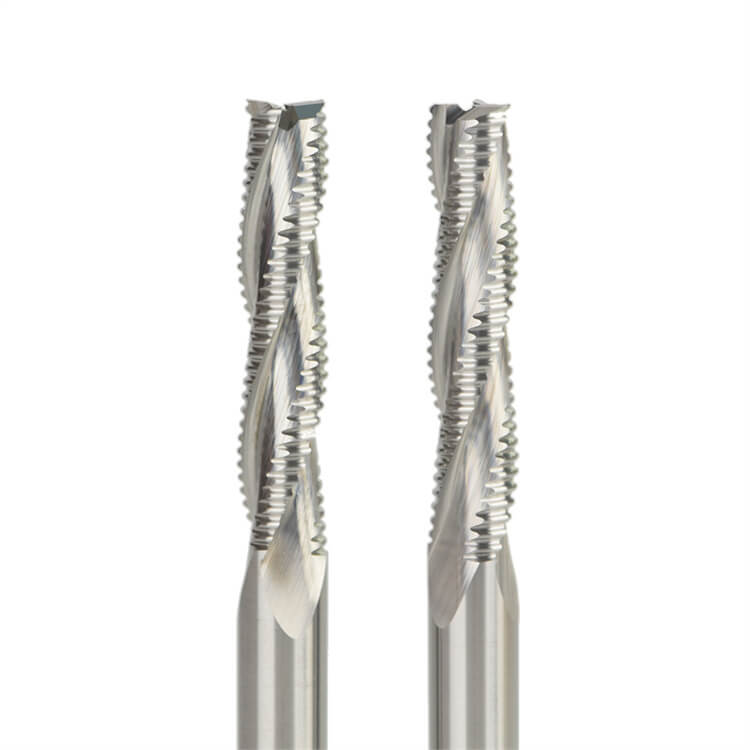

Product name:Three flute roughing milling cutter
Material: Carbide
Shank diameter: 6-12 mm
Overall length: 100MM
End type: Center cutting
Main features
*Excellent combination of upper and lower blades, SHARP cutting edge;
*High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
*No burrs for Up and down spiral machining;
*High performance-to-price ratio, improve the work efficiency, reduce cost;
Application
Engraving and cutting fine, Acrylic, PVC, Nylon, Resin, Wood, Plywood,
| Flute Dia(mm) | Flute Length(mm) | Shank Dia (mm) | Overall length (mm) | Code |
|---|---|---|---|---|
| 6 | 50 | 6 | 100 | 10300650 |
| 8 | 80 | 8 | 100 | 10300850 |
| 8 | 60 | 8 | 100 | 10300860 |
| 10 | 40 | 10 | 100 | 10301040 |
| 10 | 45 | 10 | 100 | 10301045 |
| 10 | 48 | 10 | 100 | 10301048 |
| 10 | 50 | 10 | 100 | 10301050 |
| 10 | 60 | 10 | 100 | 10301060 |
| 12 | 50 | 12 | 100 | 10301250 |
| 12 | 52 | 12 | 100 | 10301252 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
Contact Us: [email protected]
WEIX can supply a wide range varlety of high quality CNC spare parts, such as Woodworking Router Bit, Carbide End Mill, PCD & Carbide Tipped Router Bit, Boring Drill Bit & TCT Tool, Dental Burs, Circular Saw Blade, Replacement Insert & Inserted Tool, HSS Tools, Rotary Bur, Stone Engraving Bit and other Related Accessories. We can provide best parts support for your machine and business.
