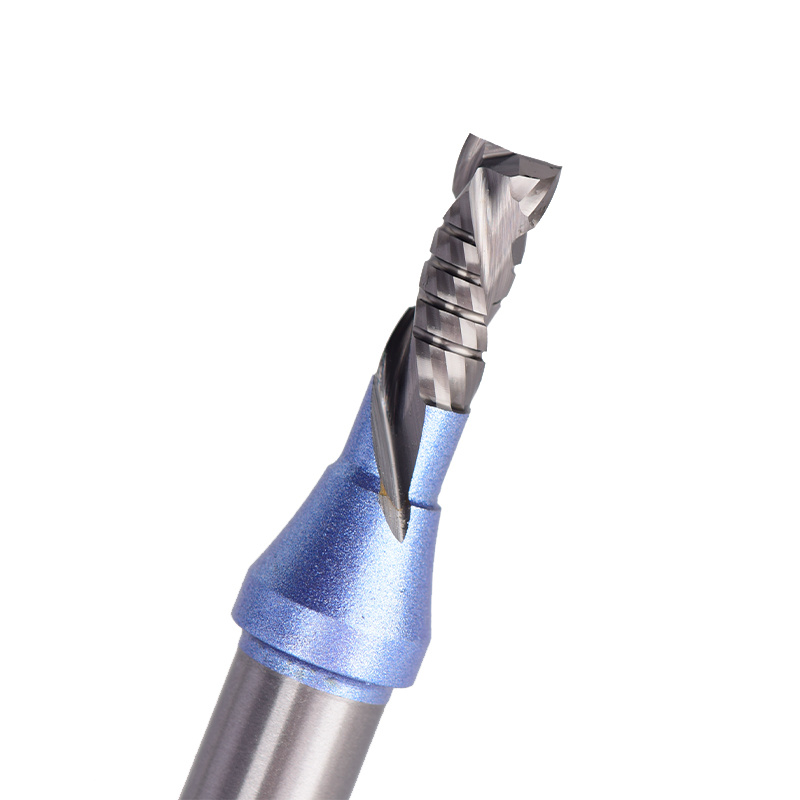

TCT Two Flutes Compression Bit With Teeth
- Code: 1103
- Material:Carbide
- Coating:No coating
- Shank diameter: 1/2
- Blade diameter：6mm/8mm/10mm
- Overall length: 20-32mm
- Flute:2
Main features
- Drive efficiency to it’s full potential with a 2 flute compression chip breaker.
- These bits will produce chips at an astonishing rate and leave a perfect top and bottom finish.
Application
Composite Materials (not ACP/ACM)
Laminate
Melamine
Melamine Particle Board
MDF/HDF
Veneered Plywood
Softwood
Not advisable
Hardwoods
WEIX Tips
These bits are meant for industrial application and must be treated mean to be kept sharp. This means they will need to be feed at a high rate so that the bit does not overheat or collect residue. Alternatively, drop your spindle speed to ensure a consistent chip load.
| TCT二刃复合刀带横槽 | 1103 | ||||
| TCT Two Flutes Compression Bit With Teeth 1103 |
|||||
| 序号 | 编号 | 关键尺寸 | 柄径 | 刃径 | 刃长 |
| NO | Order No. | Size | SHK | CED | CEL |
| 1 | 11030620 | 6*20 | 1/2 | 6 | 20 |
| 2 | 11030622 | 6*22 | 1/2 | 6 | 22 |
| 3 | 11030625 | 6*25 | 1/2 | 6 | 25 |
| 4 | 11030628 | 6*28 | 1/2 | 6 | 28 |
| 5 | 11030630 | 6*30 | 1/2 | 6 | 30 |
| 6 | 11030820 | 8*20 | 1/2 | 8 | 20 |
| 7 | 11030822 | 8*22 | 1/2 | 8 | 22 |
| 8 | 11030825 | 8*25 | 1/2 | 8 | 25 |
| 9 | 11030828 | 8*28 | 1/2 | 8 | 28 |
| 10 | 11030830 | 8*30 | 1/2 | 8 | 30 |
| 11 | 11031022 | 10*22 | 1/2 | 10 | 22 |
| 12 | 11031028 | 10*28 | 1/2 | 10 | 28 |
| 13 | 11031032 | 10*32 | 1/2 | 10 | 32 |
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
Contact Us: [email protected]
