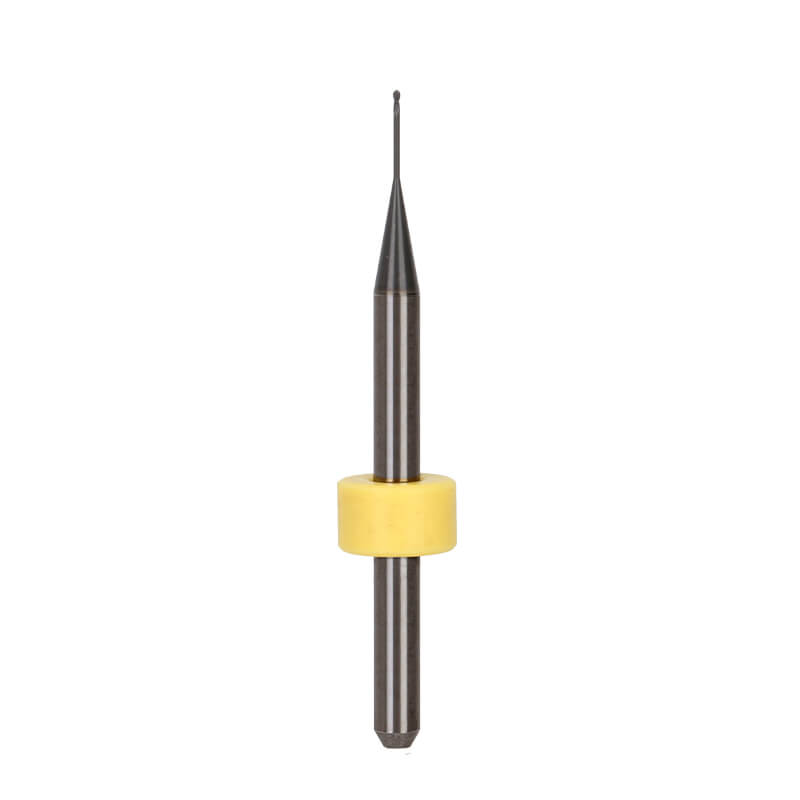

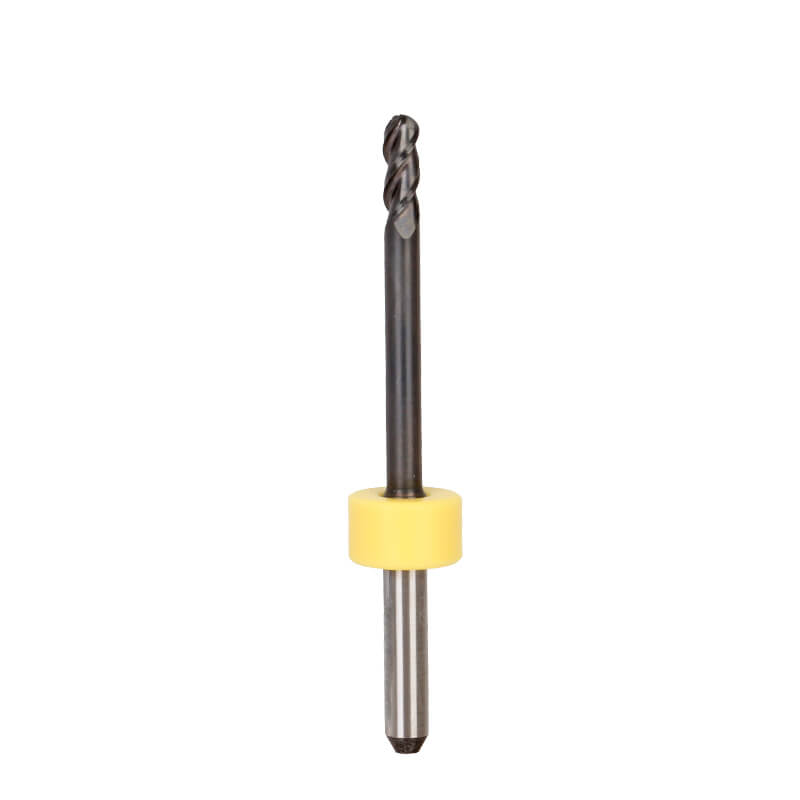

2 Flutes Sirona Dental Milling Bur
Material: Carbide
Coating:DLC
Cutting Dia: 0.5/1.0/2.5 mm
Shank diameter: 3 mm
Overall length: 42/43/43 mm
End type: Center cutting
Main features
*This carbide dental burs is designed for use with Sirona.
*Allow to mill material 10mm-26mm in thickness, approved for milling:
zirconia, Wax and PMMA and some metal milling.
*Specially engineered for precise performance, maximun durability and longer life
* High milling capacity
Application
Suitable for Zirconia, PMMA and wax milling.
| Cutting dia(mm) | Cutting edge length(mm) | Effective cutting length(mm) | Shank dia(mm) | Overall length(mm) | No Coating | DLC | DC |
|---|---|---|---|---|---|---|---|
| 0.5 | 1.5 | 5.0 | 3.0 | 42.0 | WSI.0505 | WSI.0505-DLC | WSI.0505-DC |
| 1.0 | 4.5 | 16.0 | 3.0 | 43.0 | WSI.1016 | WSI.1016-DLC | WSI.1016-DC |
| 2.5 | 7.0 | 25.0 | 3.0 | 43.0 | WSI.2525 | WSI.2525-DLC | WSI.2525-DC |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
<a href=”https://weix-tool.com/catalogs/”>Click to download our catalog</a>
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
Contact Us: <a href=”mailto:[email protected]”>[email protected]</a>
<a href=”https://weix-tool.com/speed-feed/”>Click there to download files</a>
