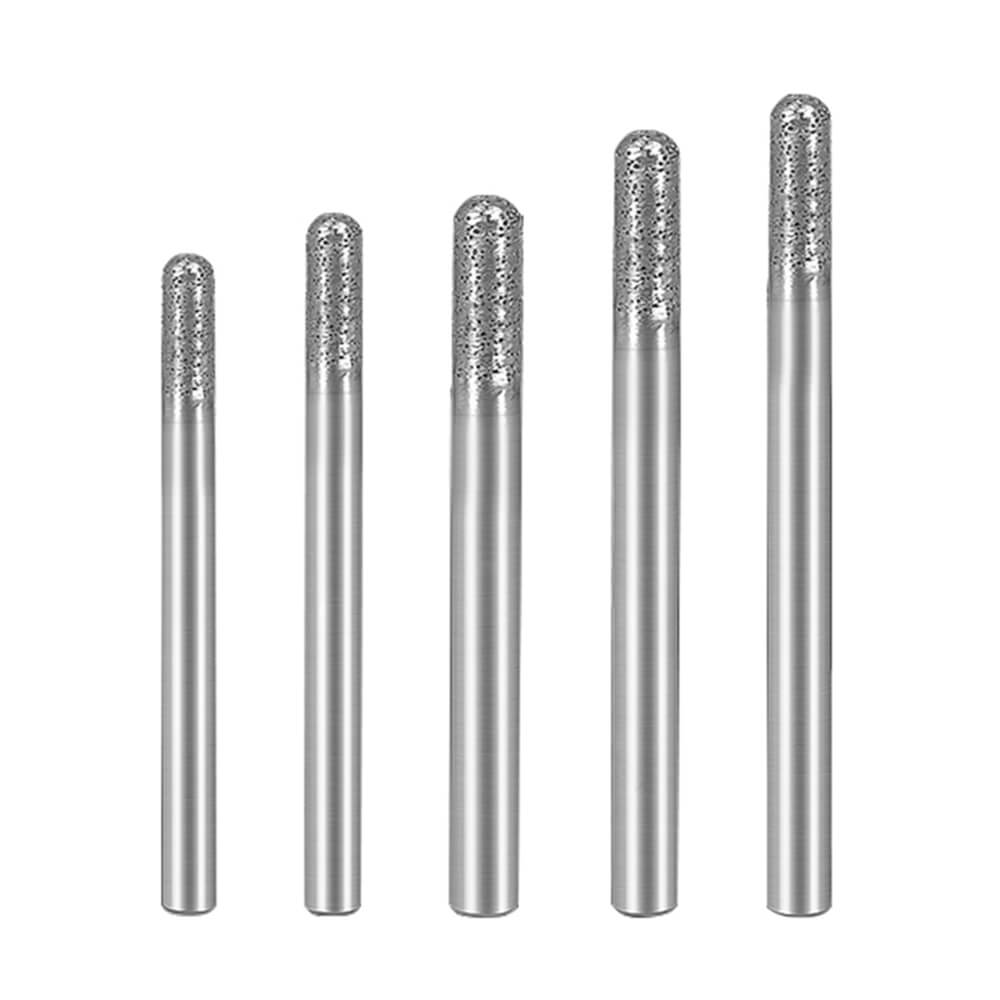

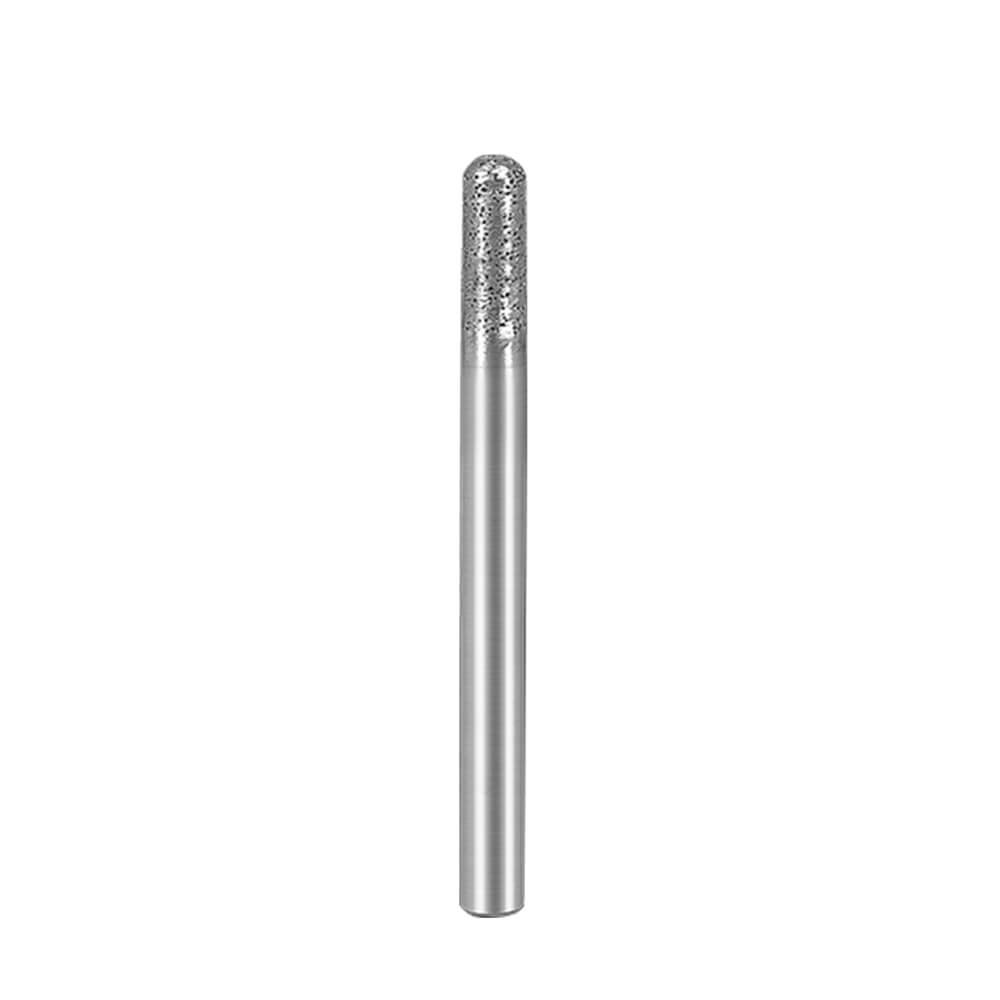

Sintered Stone Cutter Ball Head
Code:1049
Material:Alloy steel
Coating: No Coating
Shank diameter: 6-12 mm
Overall length: 70-120mm
End type:Sintered Stone Cutter
Main features
*Tungsten steel body emery head, vacuum sintered cold pressing
*High temperature resistance and high hardness
*Tough and wear-resistant, long service life
Application
Suitable for processing materialsApply to
Carving of granite, marble, bluestone, etc.
Stone carving, embossing, grinding, carving patterns, secant lines, etc.
| SHK | Tool nose diameter | CEL | OVL | Product Specifications | Product code |
|---|---|---|---|---|---|
| 6 | 6 | 15 | 70 | 6-15 | 1049061504 |
| 6 | 6 | 20 | 70 | 6-20 | 1049062004 |
| 6 | 6 | 25 | 70 | 6-25 | 1049062504 |
| 6 | 6 | 30 | 80 | 6-30 | 1049063004 |
| 8 | 8 | 20 | 80 | 8-20 | 1049082004 |
| 8 | 8 | 30 | 100 | 8-30 | 1049083004 |
| 10 | 10 | 20 | 90 | 10-20 | 1049102004 |
| 10 | 10 | 25 | 100 | 10-25 | 1049102504 |
| 10 | 10 | 30 | 100 | 10-30 | 1049103004 |
| 12 | 10 | 20 | 100 | 12-20 | 1049122004 |
| 12 | 12 | 25 | 110 | 12-25 | 1049122504 |
| 12 | 12 | 30 | 120 | 12-30 | 1049123004 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
