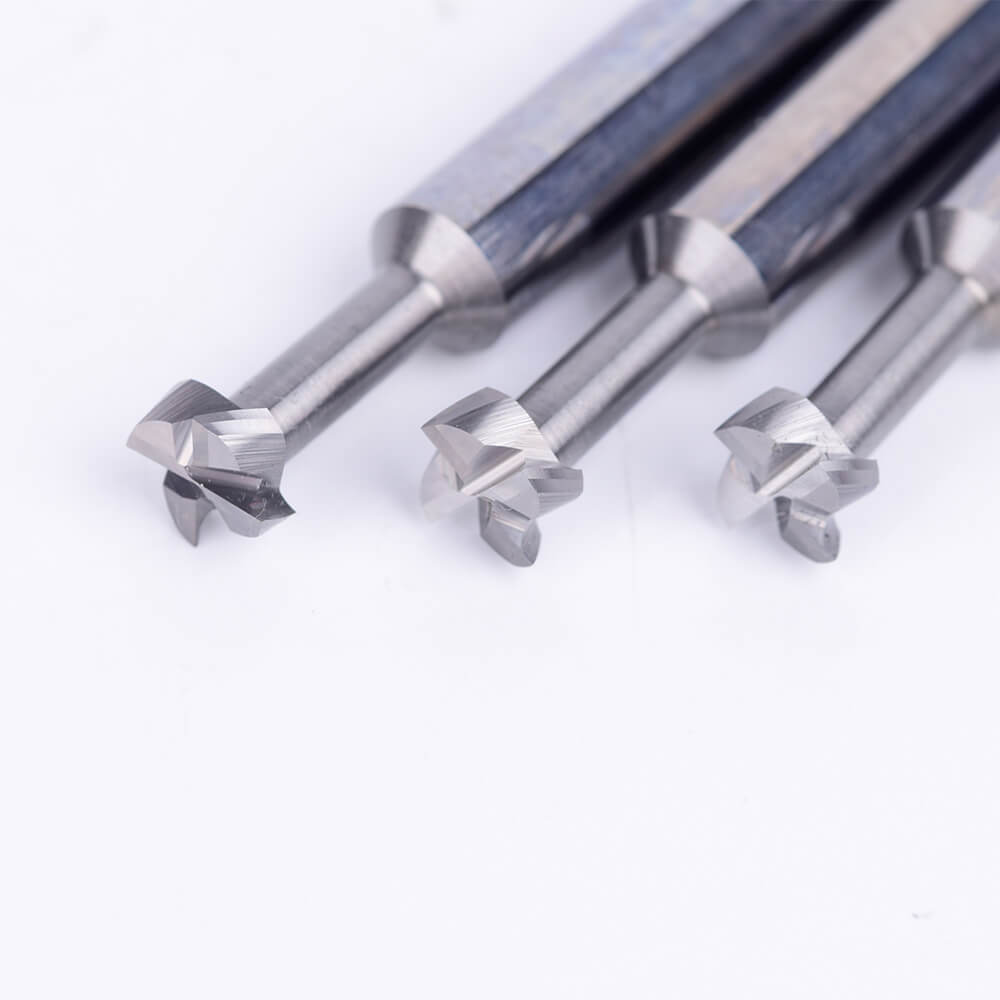

Four Flutes Tungsten T type End Mill
Code:5502
Material:Tungsten steel
Coating: No Coating
Number of blades: 4 Flutes
Blade diameter: 4-12mm
Overall length: 50-60mm
Main features
*Adopt new high-quality fine tungsten steel bar, with high wear resistance and strength, which greatly improves the service cutter of the tool
* Sharp and large rake angle, research and develop innovative improved process, the sharpness of large rake angle is greatly improved, the cutting heat is reduced, and the problem of sticking knife is solved from the root.
* Hard coating is applied to the cutting edge to directly perform high-speed roughing to fine machining on heat-treated materials below 55°, reducing the number of tool changes
*The handle is chamfered, shockproof and decompressed, the chamfered layout of the handle is easier to clamp, and the quality of laser marking on the handle is guaranteed
Application
*Suitable for processing materialsApply to
Plane machining, U-groove machining, side machining and grooving machining of wood, aluminum alloy, iron, steel and other materials
*Adaptation Machine Capable of
CNC machining centers, engraving machines, engraving machines and other high-speed machines
| CED | THK | OVL | Flute | Order No. |
|---|---|---|---|---|
| 4 | 1 | 50 | 4 | 5501H1M4 |
| 4 | 2 | 50 | 4 | 5501H2M4 |
| 4 | 3 | 50 | 4 | 5501H3M4 |
| 4 | 4 | 50 | 4 | 5501H4M4 |
| 6 | 1 | 50 | 4 | 5501H1M6 |
| 6 | 2 | 50 | 4 | 5501H2M6 |
| 6 | 3 | 50 | 4 | 5501H3M6 |
| 6 | 4 | 50 | 4 | 5501H4M6 |
| 6 | 5 | 50 | 4 | 5501H5M6 |
| 8 | 1 | 50 | 4 | 5501H1M8 |
| 8 | 2 | 50 | 4 | 5501H2M8 |
| 8 | 3 | 50 | 4 | 5501H3M8 |
| 8 | 4 | 50 | 4 | 5501H4M8 |
| 8 | 5 | 50 | 4 | 5501H5M8 |
| 10 | 1 | 50 | 4 | 5501H1M10 |
| 10 | 2 | 50 | 4 | 5501H2M10 |
| 10 | 3 | 50 | 4 | 5501H3M10 |
| 10 | 4 | 50 | 4 | 5501H4M10 |
| 10 | 6 | 50 | 4 | 5501H6M10 |
| 12 | 1 | 60 | 4 | 5501H1M12 |
| 12 | 2 | 60 | 4 | 5501H2M12 |
| 12 | 3 | 60 | 4 | 5501H3M12 |
| 12 | 3 | 60 | 4 | 5501H4M12 |
| 12 | 5 | 60 | 4 | 5501H5M12 |
| 12 | 6 | 60 | 4 | 5501H6M12 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
Contact Us: [email protected]
