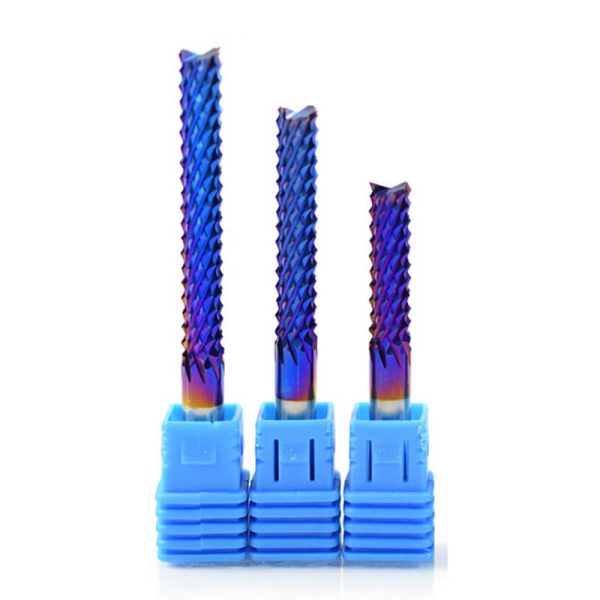

Corn Milling Cutter
Code:1008
Material: Carbide
Coating: Nano Blue Coated
Shank diameter: 3.175-12 mm
Overall length: 38-100mm
End type: Center cutting
Main features
*Double-edged positive and negative spiral chip removal structure for long service life
*Sharp edge and high wear resistance, professionally designed for wood milling.
*Cutting the upper and lower sides smooth and burr-free.
*Large spiral flute, imported tungsten steel base material
Application
Wood processing,MDF,plywood and multilayer PCB, aluminum-plastic panels,such as cutting hollow
| Flute Dia(mm) | Flute Length(mm) | Shank Dia (mm) | Overall length (mm) | Code |
|---|---|---|---|---|
| 0.5 | 2 | 3.175 | 38 | 100800502 |
| 0.8 | 2 | 3.175 | 38 | 100800802 |
| 1 | 7 | 3.175 | 38 | 10080107 |
| 1.2 | 7 | 3.175 | 38 | 10081207 |
| 1.5 | 8 | 3.175 | 38 | 10081508 |
| 1.8 | 9 | 3.175 | 38 | 10081809 |
| 2 | 10 | 3.175 | 38 | 10080210 |
| 2.5 | 12 | 3.175 | 38 | 10082512 |
| 3.175 | 12 | 3.175 | 38 | 10083112 |
| 3.175 | 17 | 3.175 | 38 | 10083117 |
| 3.175 | 22 | 3.175 | 45 | 10083122 |
| 3.175 | 25 | 3.175 | 45 | 10083125 |
| 4 | 17 | 4 | 45 | 10080417 |
| 4 | 22 | 4 | 45 | 10080422 |
| 4 | 25 | 4 | 50 | 10080425 |
| 4 | 28 | 4 | 50 | 10080428 |
| 4 | 32 | 4 | 55 | 10080432 |
| 6 | 22 | 6 | 50 | 10080622 |
| 6 | 25 | 6 | 50 | 10080625 |
| 6 | 28 | 6 | 60 | 10080628 |
| 6 | 32 | 6 | 60 | 10080632 |
| 6 | 42 | 6 | 75 | 10080642 |
| 6 | 52 | 6 | 85 | 10080652 |
| 8 | 25 | 8 | 60 | 10080825 |
| 8 | 35 | 8 | 75 | 10080835 |
| 8 | 42 | 8 | 75 | 10080842 |
| 8 | 52 | 8 | 90 | 10080852 |
| 10 | 42 | 10 | 100 | 10081042 |
| 10 | 52 | 10 | 100 | 10081052 |
| 12 | 45 | 12 | 100 | 10081245 |
| 12 | 55 | 12 | 100 | 10081255 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
