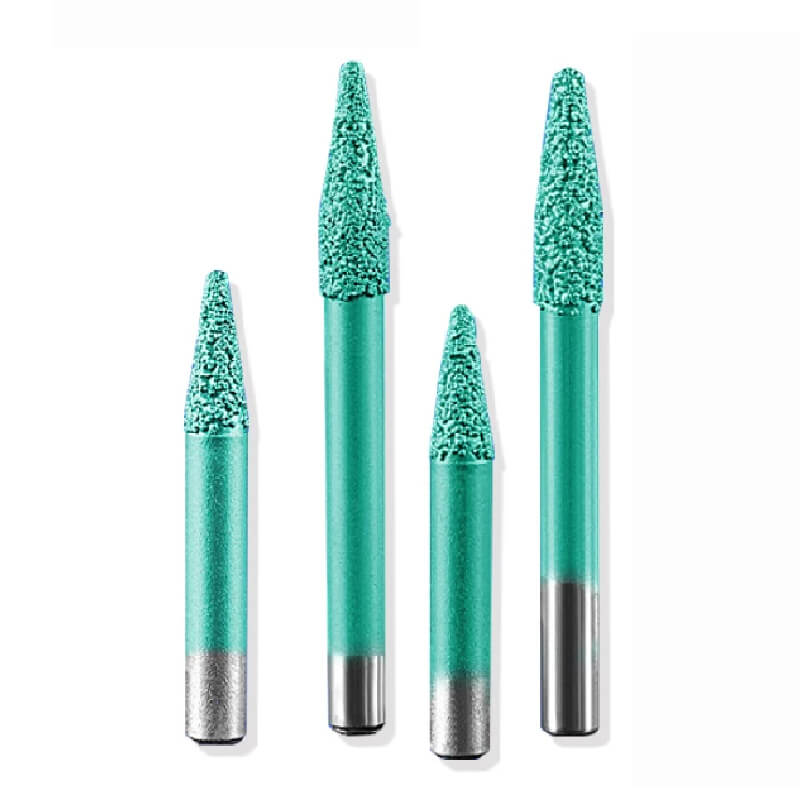

Brazing stone engraving bits tapered no groove
Code:1040
Material:Emery+Cemented Carbide
Coating: No Coating
Shank diameter: 6-10 mm
Overall length:60-120mm
End type:Brazed Stone Knife
Main features
*The diamond grain of the cutter head is uniform
*Sharp cutting, not easy to wear
*Sturdy Continuous Cutter
*High temperature lacquer coating on cutter head, anti-oxidation
Application
*Suitable for processing materialsApply to
Carving of marble, bluestone, white marble, sandstone, etc.
*Adaptation Machine Capable of
Advertising engraving machine cnc CNC machine
| Tool nose diameter | SHK | CEL | OVL | Product Specifications | Product code |
|---|---|---|---|---|---|
| 1 | 6 | 6 | 60 | ZD6.1-6 | 10401606 |
| 2 | 6 | 6 | 60 | ZD6.2-6 | 10402606 |
| 3 | 6 | 6 | 60 | ZD6.3-6 | 10403606 |
| 3 | 6 | 12 | 60 | ZD6.3-12 | 10403612 |
| 3 | 6 | 20 | 60 | ZD6.3-20 | 10403620 |
| 4 | 6 | 20 | 60 | ZD6.4-20 | 10404620 |
| 3 | 8 | 20 | 60 | ZD8.3-20 | 10403820 |
| 4 | 8 | 20 | 60 | ZD8.4-20 | 10404820 |
| 5 | 8 | 20 | 60 | ZD8.5-20 | 10405820 |
| 6 | 8 | 20 | 60 | ZD8.6-20 | 10406820 |
| 3 | 8 | 30 | 90 | ZD8.3-30 | 10403830 |
| 4 | 8 | 30 | 90 | ZD8.4-30 | 10404830 |
| 5 | 8 | 30 | 90 | ZD8.5-30 | 10405830 |
| 6 | 8 | 30 | 90 | ZD8.6-30 | 10406830 |
| 3 | 10 | 30 | 90 | ZD10.3-30 | 104031030 |
| 4 | 10 | 30 | 90 | ZD10.4-30 | 104041030 |
| 5 | 10 | 30 | 90 | ZD10.5-30 | 104051030 |
| 6 | 10 | 30 | 90 | ZD10.6-30 | 104061030 |
| 8 | 10 | 30 | 90 | ZD10.8-30 | 104081030 |
| 3 | 10 | 50 | 120 | ZD10.3-40 | 104031040 |
| 4 | 10 | 50 | 120 | ZD10.4-40 | 104041040 |
| 5 | 10 | 50 | 120 | ZD10.5-40 | 104051040 |
| 6 | 10 | 50 | 120 | ZD10.6-40 | 104061040 |
| 8 | 10 | 50 | 120 | ZD10.8-40 | 104081040 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
