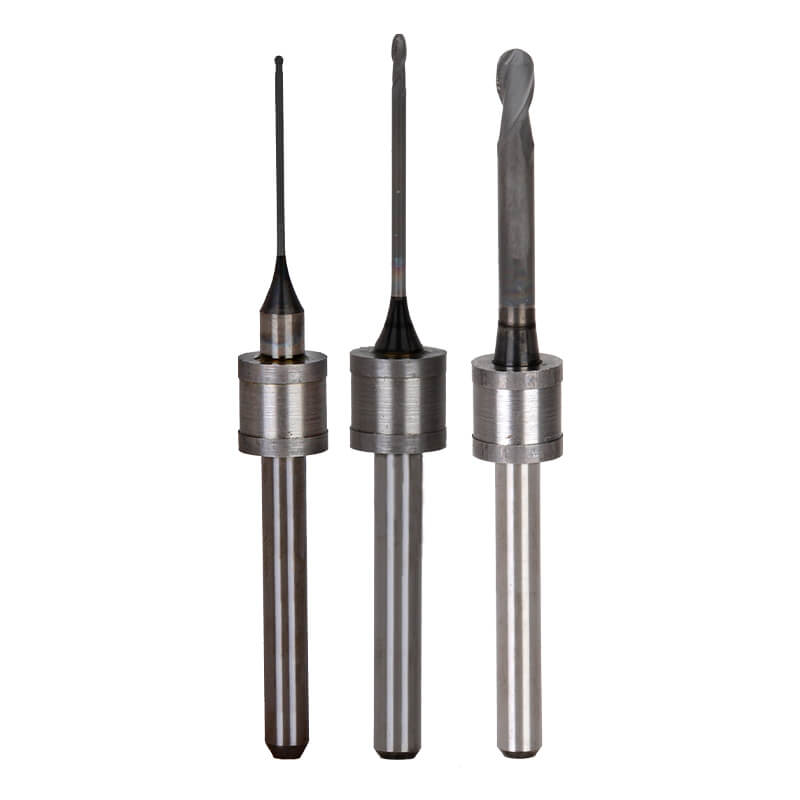

2 Flutes Amann Girrbach Dental Milling Bur
Material: Carbide
Coating:DLC
Cutting Dia: 0.6/1.0/2.5 mm
Shank diameter: 3 mm
Overall length: 47 mm
End type: Center cutting
Main features
*This carbide dental burs is designed for use with AMANN GIRRBACH
*Allow to mill material 10mm-26mm in thickness, approved for milling: zirconia, Wax and PMMA and some metal milling.
*Specially engineered for precise performance, maximun durability and longer life
* High milling capacity
Application
Suitable for Zirconia, PMMA and wax milling.
| Cutting dia(mm) | Cutting edge length(mm) | Effective cutting length(mm) | Shank dia(mm) | Overall length(mm) | No Coating | DLC | DC |
|---|---|---|---|---|---|---|---|
| 0.6 | 1.5 | 13.0 | 3.0 | 47.0 | WAG.0613 | WAG.0613-DLC | WAG.0613-DC |
| 1.0 | 3.5 | 16.0 | 3.0 | 47.0 | WAG.1016 | WAG.1016-DLC | WAG.1016-DC |
| 2.5 | 5.0 | 16.0 | 3.0 | 47.0 | WAG.2516 | WAG.2516-DLC | WAG.2516-DC |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
Contact Us: [email protected]
