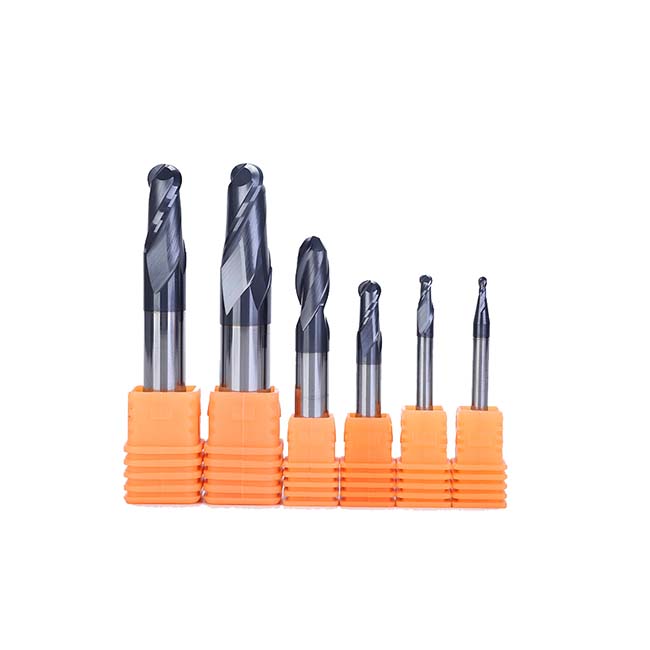

HRC 45 2 Flutes Ball Nose End Mill
Code:5112
Material: Carbide
Coating: AlTiN
Shank diameter: 4-20mm
Overall length: 50-100mm
Flutes:2
End type: Center cutting
Main features
*The design of chip groove helix angle highly improve the ability of chip removal.
*H6shank tolerance for high precision tool holders
*Specialized Nano TiSiN coating to process high hardness mold material
*Minimum diameter 0.2mm, even the subtle part of workpiece can be easily accomplished.
Application
Suitable for carbon structural steel, mold steel, alloy steel and below HRC45 steel
| Flute Dia(mm) | Flute Length(mm) | Shank Dia (mm) | Overall length (mm) | Flutes No. | Code |
|---|---|---|---|---|---|
| R0.5 | 2 | 4 | 50 | 2 | 5112001 |
| R0.75 | 3 | 4 | 50 | 2 | 5112002 |
| R1.0 | 4 | 4 | 50 | 2 | 5112003 |
| R1.25 | 5 | 4 | 50 | 2 | 5112004 |
| R1.5 | 6 | 4 | 50 | 2 | 5112005 |
| R1.75 | 7 | 4 | 50 | 2 | 5112006 |
| R2.0 | 8 | 4 | 50 | 2 | 5112007 |
| R0.5 | 2 | 6 | 50 | 2 | 5112008 |
| R0.75 | 3 | 6 | 50 | 2 | 5112009 |
| R1.0 | 4 | 6 | 50 | 2 | 5112010 |
| R1.5 | 5 | 6 | 50 | 2 | 5112011 |
| R2.0 | 6 | 6 | 50 | 2 | 5112012 |
| R2.5 | 8 | 6 | 50 | 2 | 5112013 |
| R3.0 | 10 | 6 | 50 | 2 | 5112014 |
| R4.0 | 16 | 8 | 60 | 2 | 5112015 |
| R5.0 | 20 | 10 | 75 | 2 | 5112016 |
| R6.0 | 24 | 12 | 75 | 2 | 5112017 |
| R8.0 | 30 | 16 | 100 | 2 | 5112018 |
| R10.0 | 30 | 20 | 100 | 2 | 5112019 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
